Yamaha YZF-R125 Service Manual: Troubleshooting

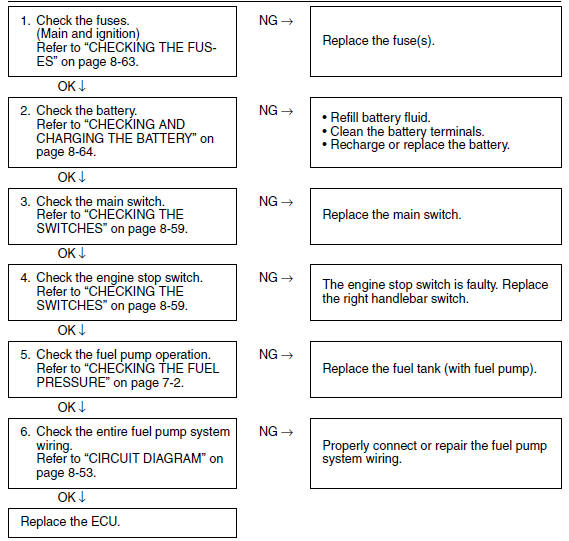

If the fuel pump fails to operate.

NOTE:

  • Before troubleshooting, remove the following part(s):

1. Rider seat

2. Fuel tank

Troubleshooting


    Circuit diagram
    4. Main fuse 5. Main switch 9. Battery 17.Engine stop switch 25.ECU (engine control unit) 30.Fuel pump 64.Ignition fuse ...

    Electrical components
    1. Main switch 2. Clutch switch 3. Front brake light switch 4. Ignition coil 5. Throttle body sensor assembly (intake air pressure sensor, intake air temperature sensor, throttle position se ...
