Yamaha YZF-R125 Service Manual: Checking the primary driven gear

Yamaha YZF-R125 Service Manual / Engine / Clutch / Checking the primary driven gear

1. Check:

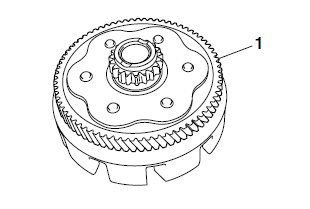

  • Primary driven gear "1" Damage/wear Replace the
    primary drive gear and clutch housing as a set.

    Excessive noise during operation
    Replace the primary drive gear and clutch housing as a set.

Checking the primary driven gear


    Checking the primary drive gear
    1. Remove: Primary drive gear Refer to "BALANCER GEAR" on page 5-53. 2. Check: Primary drive gear Damage/wear  Replace the primary drive gear and clutch housing as a set. ...

    Installing the clutch
    1. Install: Conical spring washer "1" NOTE: Install the conical spring washer as shown in the illustration. 2. Install: Clutch housing Thrust washer "1" NOTE: Be sure to instal ...
