Yamaha YZF-R125 Service Manual: Checking the cooling system

1. Remove:

  • Side covers
  • Upper side cowlings Refer to "GENERAL CHASSIS" on page 4-1.

2. Check:

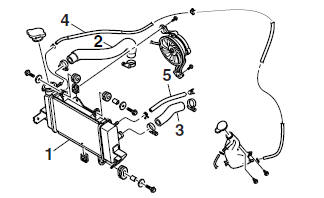

  • Radiator "1"
  • Radiator inlet hose "2"
  • Radiator outlet hose "3"

Coolant reservoir hose "4"

Water pump breather hose "5" Cracks/damage → Replace.

Refer to "RADIATOR" on page 6-1.

Checking the cooling system


3. Install:

  • Upper side cowlings
  • Side covers Refer to "GENERAL CHASSIS" on page 4-1.
    Checking the coolant level
    1. Stand the vehicle on a level surface. NOTE: Place the vehicle on a suitable stand. Make sure the vehicle is upright. 2. Check: Coolant level The coolant level should be between the max ...

    Changing the coolant
    1. Remove: Lower side cowlings Refer to "GENERAL CHASSIS" on page 4-1. 2. Remove: Radiator cap "1" WARNINGA hot radiator is under pressure. Therefore, do not remove t ...
