Yamaha YZF-R125 Service Manual: Removing the crankshaft

Yamaha YZF-R125 Service Manual / Engine / Crankshaft / Removing the crankshaft

1. Remove:

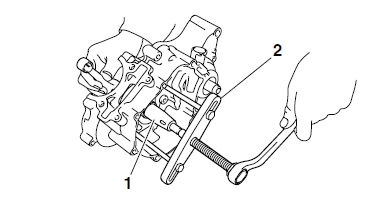

  • Crankshaft "1"

NOTE:

  • Remove the crankshaft with the crankcase separating tool "2".
  • Make sure the crankcase separating tool is centered over the crankshaft.
CAUTION:
  • To protect the end of the crankshaft, place an appropriate sized socket between the crankcase separating tool bolt and the crankshaft.
  • Do not tap on the crankshaft.
