Yamaha YZF-R125 Service Manual: Lubrication points and lubricant types

Yamaha YZF-R125 Service Manual / Specifications / Lubrication points and lubricant types

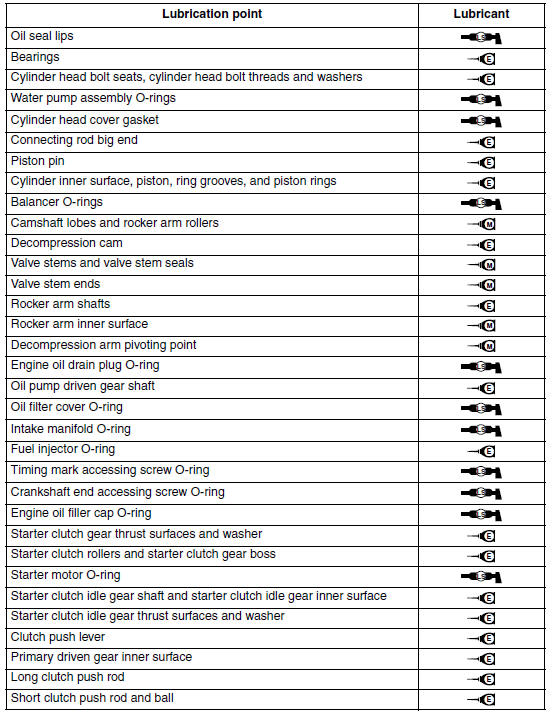

Engine

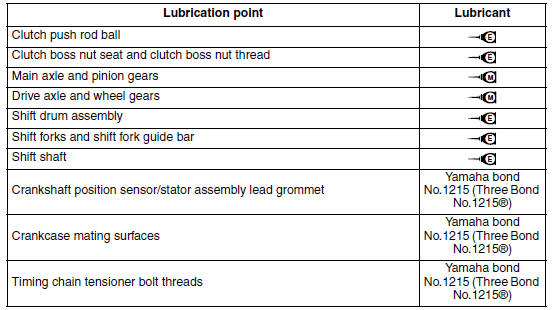

Engine


Engine

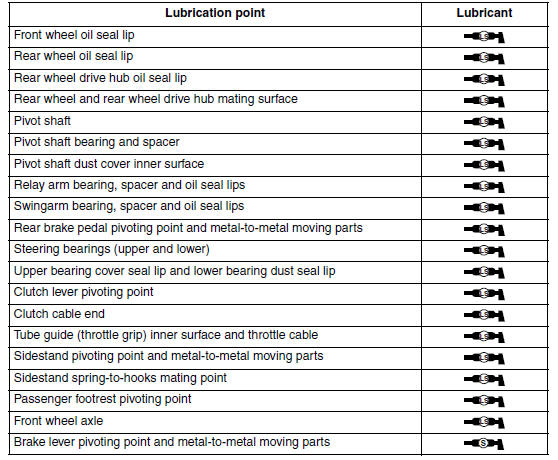

Chassis

Chassis
