Yamaha YZF-R125 Service Manual: Rear wheel

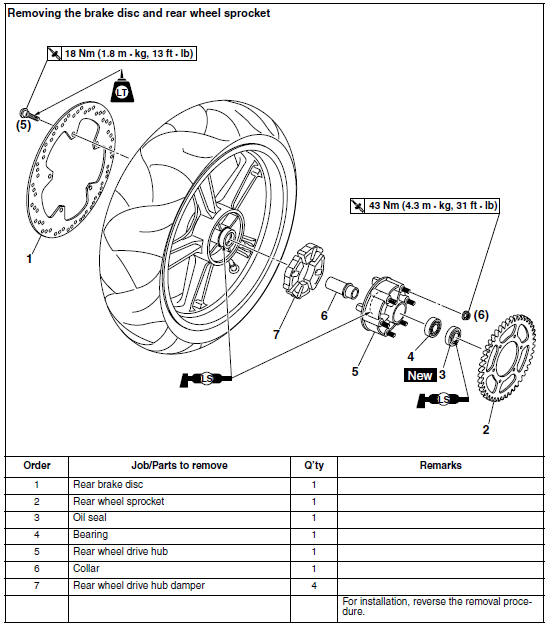

Rear wheel

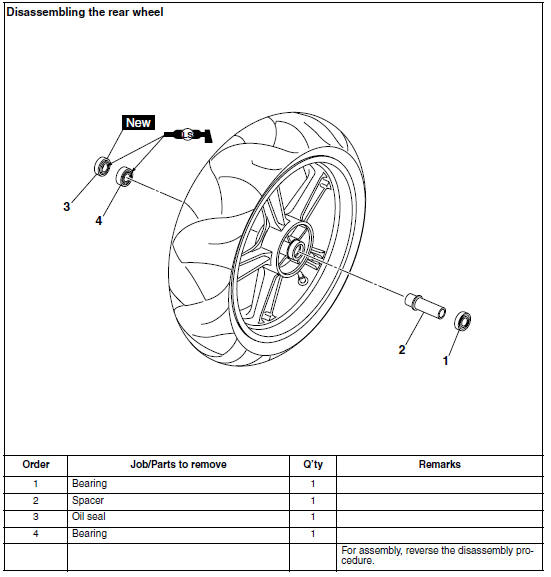

Rear wheel


Rear wheel


Installing the front wheel (disc)
1. Install: Front brake disc NOTE: Be sure to install the front brake disc with the arrow mark "a" on the disc facing out. Tighten the brake disc bolts in stages and in a crisscross p ...

Removing the rear wheel (disc)
1. Stand the vehicle on a level surface. WARNINGSecurely support the vehicle so that there is no danger of it falling over. 2. Elevate: Rear wheel NOTE: Place the vehicle ...

Other materials:

Circuit diagram
2. Crankshaft position sensor 4. Main fuse 5. Main switch 6. Radiator fan motor fuse 8. Sidestand switch 9. Battery 17.Engine stop switch 19.Intake air pressure sensor 20.Intake air temperature sensor 21.Throttle position sensor 22.Coolant temperature sensor 23.Lean angle sensor 24.S ...

Installing the throttle body
1. Install: Throttle body joint clamps NOTE: Align the projections "a" on the throttle body joint with the slot "b" in each throttle body joint clamp. 2. Install: Throttle body joint NOTE: Align the projection "a" on the throttle body joint with the slot "b" in the intake mani ...
