Yamaha YZF-R125 Service Manual: Installing the bearing retainer

Yamaha YZF-R125 Service Manual / Engine / Crankcase / Installing the bearing retainer

1. Install:

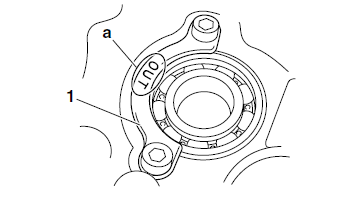

  • Bearing retainer "1"

NOTE:

  • Install the bearing retainer "1" with its "OUT" mark "a" facing outward.
  • Apply locking agent (LOCTITE) to the threads of the bearing retainer bolt.

Installing the bearing retainer


    Checking the bearings and oil seal
    1. Check: Bearings Clean and lubricate the bearings, and then rotate the inner race with your finger. Rough movement Replace. Oil seal Damage/wear Replace. ...

    Assembling the crankcase
    1. Thoroughly clean all the gasket mating surfaces and crankcase mating surfaces. 2. Apply: Sealant (onto the crankcase mating surfaces) NOTE: Do not allow any sealant to come into conta ...
