Yamaha YZF-R125 Service Manual: Checking the shift forks

Yamaha YZF-R125 Service Manual / Engine / Transmission / Checking the shift forks

The following procedure applies to all of the shift forks.

1. Check:

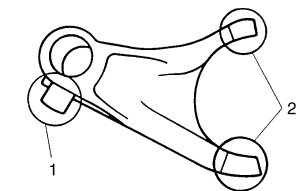

  • Shift fork cam follower "1"
  • Shift fork pawl "2" Bends/damage/scoring/wear
    Replace the shift fork.

Checking the shift forks


2. Check:

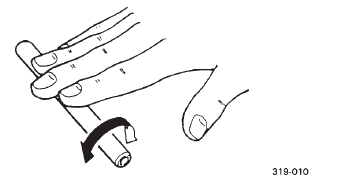

  • Shift fork guide bar Roll the shift fork guide bar on a flat surface.

    Bends  Replace.


WARNING

Do not attempt to straighten a bent shift fork guide bar.

Checking the shift forks


3. Check:

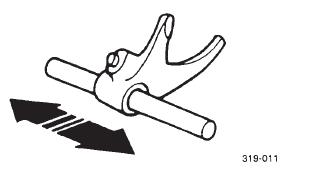

Shift fork movement (along the shift fork guide bar) Rough movement Replace the shift
forks and shift fork guide bar as a set.

Checking the shift forks


    Transmission
    ...

    Checking the shift drum assembly
    1. Check: Shift drum groove Damage/scratches/wear Replace the shift drum assembly. Shift drum segment "1" Damage/wear  Replace the shift drum assembly. Shift drum bearing "2" ...
