Controls and instruments

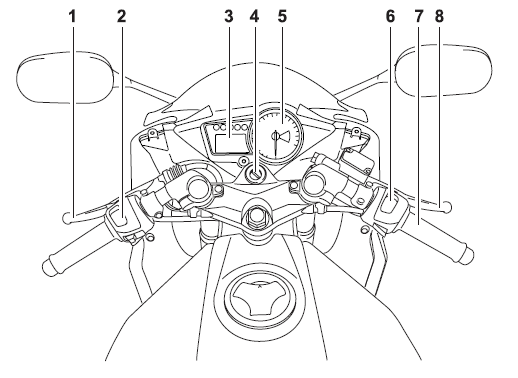

  1. 1. Clutch lever
  2. Left handlebar switches
  3. Multi-function display
  4. Main switch/steering lock
  5. Tachometer
  6. Right handlebar switches
  7. Throttle grip
  8. Brake lever
