Yamaha YZF-R125 Owners Manual: Right view


Right view

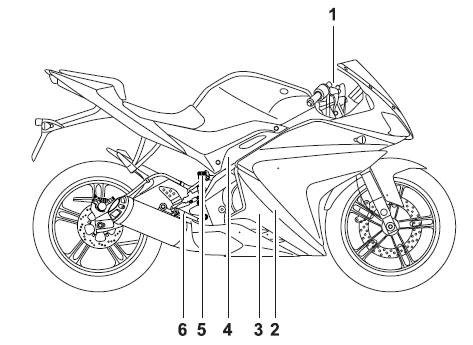

  1. Front brake fluid reservoir
  2. Engine oil filter element
  3. Dipstick
  4. Idle adjusting screw
  5. Rear brake fluid reservoir
  6. Brake pedal
    Left view
    Left view Battery Fuse box Owner's tool kit Shift pedal Coolant reservoir ...

    Controls and instruments
    Controls and instruments 1. Clutch lever Left handlebar switches Multi-function display Main switch/steering lock Tachometer Right handlebar switches Throttle grip Brake lever ...

    Other materials:

    Checking the crankshaft position sensor
    1. Disconnect: Crankshaft position sensor coupler (from the wire harness) 2. Check: Crankshaft position sensor resistance Out of specification  Replace the crankshaft position sensor/stator assembly. a. Connect the pocket tester ( × 100) to the crankshaft position sensor c ...

    Aftermarket Parts, Accessories, and Modifications
    While you may find aftermarket products similar in design and quality to genuine Yamaha accessories, recognize that some aftermarket accessories or modifications are not suitable because of potential safety hazards to you or others. Installing aftermarket products or having other modif ...

    Checking the timing chain and timing chain guide
    1. Check: Timing chain Damage/stiffness Replace the timing chain and camshaft sprocket as a set. 2. Check: Timing chain guide (intake side) Damage/wear Replace. Checking the oil strainer 1. Check: Oil strainer Damage   Replace. Contaminants Clean with solvent. ...
