Yamaha YZF-R125 Service Manual: Identification

Vehicle identification number

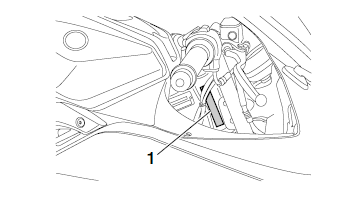

The vehicle identification number "1" is stamped into the right side of the steering head pipe.

Vehicle identification number


Model label

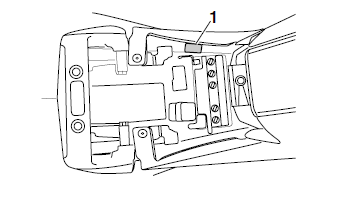

The model label "1" is affixed to the frame. This information will be needed to order spare parts.

Model label


    General information
    NOTICEThis manual was produced by MBK Industrie. primarily for use by Yamaha dealers and their qualified mechanics. It is not possible to include all the knowledge of a mechanic in o ...

    Features
    ...

    Other materials:

    Electrical components
    1. Main switch 2. Clutch switch 3. Front brake light switch 4. Ignition coil 5. Throttle body sensor assembly (intake air pressure sensor, intake air temperature sensor, throttle position sensor) 6. FID (fast idle solenoid) 7. Rectifier/regulator 8. Lean angle sensor 9. Starting circui ...

    Checking the clutch housing
    1. Check: Clutch housing dogs "1" Damage/pitting/wear  Deburr the clutch housing dogs or replace the clutch housing. NOTE: Pitting on the clutch housing dogs will cause erratic clutch operation. 2. Check: Bearing Damage/wear Replace the bearing and clutch housin ...

    Removing the generator
    1. Remove: Generator rotor nut "1" Washer NOTE: While holding the generator rotor "2" with the sheave holder "3", loosen the generator rotor nut. Do not allow the sheave holder to touch the projection on the generator rotor. 2. Remove: Generator rotor "1" (with the ...
