Yamaha YZF-R125 Service Manual: Radiator

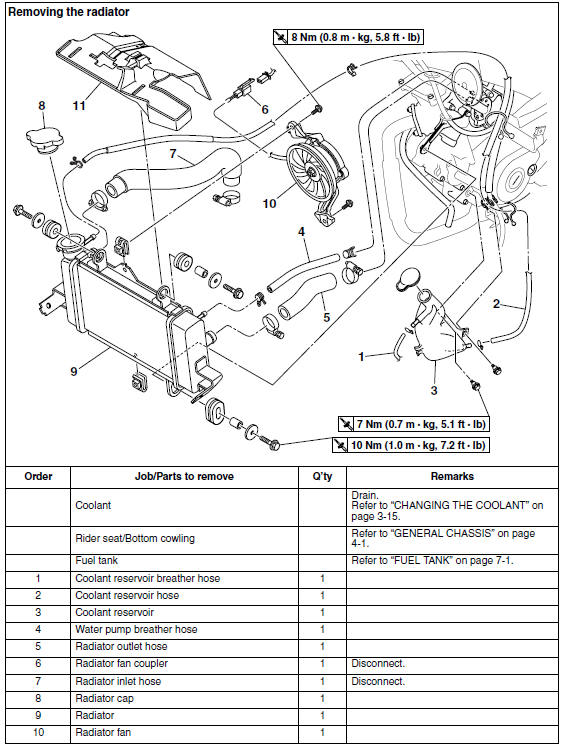

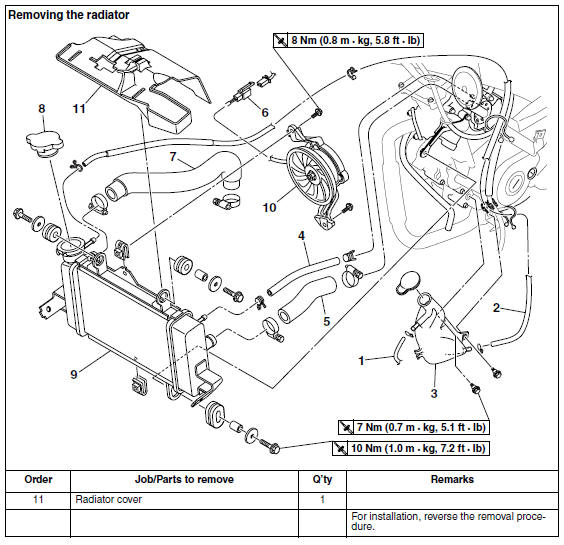

Radiator


Radiator


Cooling system
...

Checking the radiator
1. Check: Radiator fins obstruction clean. Apply compressed air to the rear of the radiator. Damage  repair or replace. NOTE: Straighten any flattened fins with a thin, flat-head scre ...

Other materials:

Circuit diagram
2. Crankshaft position sensor 4. Main fuse 5. Main switch 6. Radiator fan motor fuse 8. Sidestand switch 9. Battery 17.Engine stop switch 19.Intake air pressure sensor 20.Intake air temperature sensor 21.Throttle position sensor 22.Coolant temperature sensor 23.Lean angle sensor 24.S ...

Installing the starter clutch
1. Install: Starter clutch assembly Starter clutch bolts "1" NOTE: While holding the generator rotor "2" with the sheave holder "3", tighten the starter clutch bolts. Do not allow the sheave holder to touch the projection on the generator rotor. Stake the end "a" of each start ...

Removing the primary drive gear and balancer gears
1. Loosen: Primary drive gear nut "1" NOTE: Place the aluminum plate "a" between the balancer drive gear "2" and the balancer driven gear "3", and then loosen the primary drive gear nut. 2. Straighten the lock washer tab. 3. Loosen: Balancer driven gear nut "1" NOTE: Place ...
