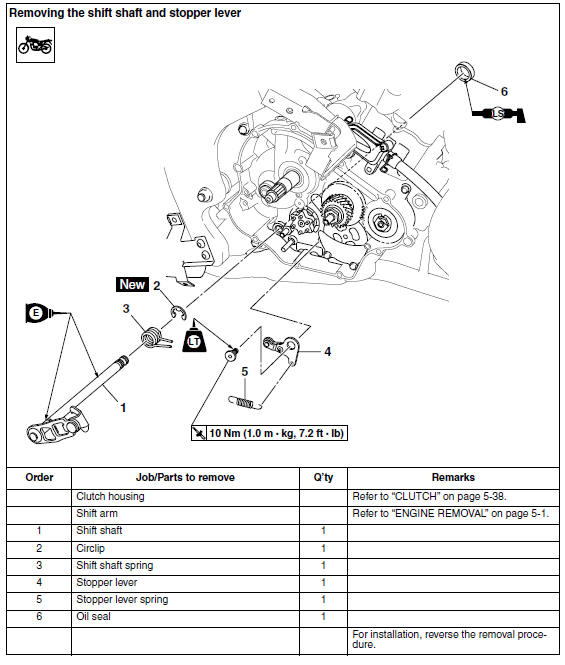

Yamaha YZF-R125 Service Manual: Shift shaft

Shift shaft


Installing the oil pump
1. Install: Oil pump assembly CAUTION:After tightening the screws, make sure the oil pump turns smoothly. ...

Checking the shift shaft
1. Check: Shift shaft Bends/damage/wear Replace. Shift shaft spring Damage/wear Replace. Checking the stopper lever 1. Check: Stopper lever Bends/damage Replace. Roller ...

Other materials:

Checking the swingarm
1. Check: Swingarm Bends/cracks/damage   Replace. 2. Check: Pivot shaft Roll the pivot shaft on a flat surface. Bends Replace. WARNINGDo not attempt to straighten a bent pivot shaft. 3. Wash: Pivot shaft Washer Swingarm adjusting collar Du ...

Cable routing
Front brake light switch lead Right handlebar switch lead Throttle cable Main switch Clutch cable Clutch switch lead Left handlebar switch lead Sub-wire harness Horn Speed sensor lead Front brake hose Main switch lead Left headlight assembly lead Right headlight asse ...

Installing the front brake master cylinder
1. Install: Brake master cylinder "1" Brake master cylinder holder "2" NOTE: Install the brake master cylinder holder with the arrow mark "a" pointing forward. Align the end of the brake master cylinder holder with the punch mark "b" on the handlebar. First, tighten the front bo ...
