Yamaha YZF-R125 Service Manual: Identification

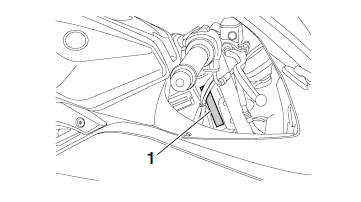

Vehicle identification number

The vehicle identification number "1" is stamped into the right side of the steering head pipe.

Vehicle identification number

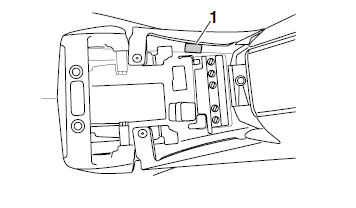

Model label

The model label "1" is affixed to the frame. This information will be needed to order spare parts.

Model label


    General information
    NOTICEThis manual was produced by MBK Industrie. primarily for use by Yamaha dealers and their qualified mechanics. It is not possible to include all the knowledge of a mechanic in o ...

    Features
    ...

    Other materials:

    Circuit diagram
    2. Crankshaft position sensor 4. Main fuse 5. Main switch 6. Radiator fan motor fuse 8. Sidestand switch 9. Battery 17.Engine stop switch 19.Intake air pressure sensor 20.Intake air temperature sensor 21.Throttle position sensor 22.Coolant temperature sensor 23.Lean angle sensor 24.S ...

    Checking the thermostat
    1. Check: Thermostat Does not open at 80.5-83.5 C (176.9-182.3 F)  Replace. a. Suspend the thermostat "1" in a container "2" filled with water. b. Slowly heat the water "3". c. Place a thermometer "4" in the water. d. While stirring the water, observe the thermostat and th ...

    Ignition circuit cut-off system
    The ignition circuit cut-off system (comprising the sidestand switch, clutch switch and neutral switch) has the following functions. It prevents starting when the transmission is in gear and the sidestand is up, but the clutch lever is not pulled. It prevents starting when the t ...
