Yamaha YZF-R125 Service Manual: Engine removal

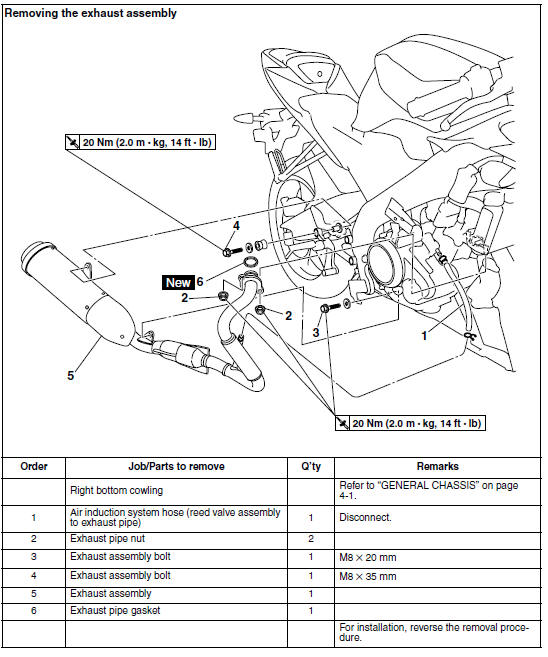

Engine removal

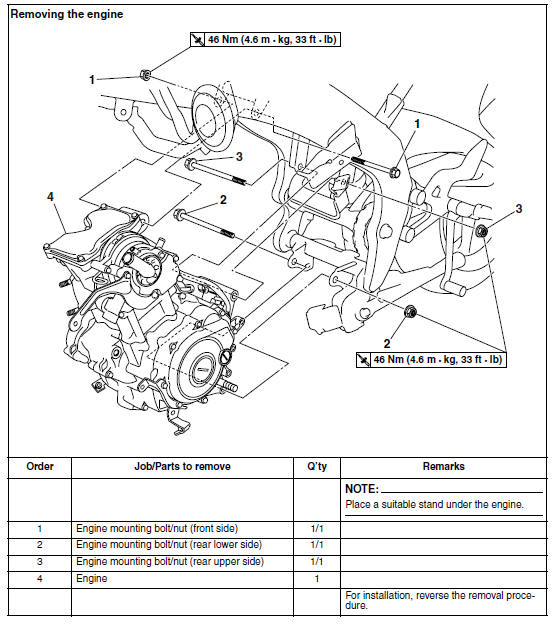

Engine removal

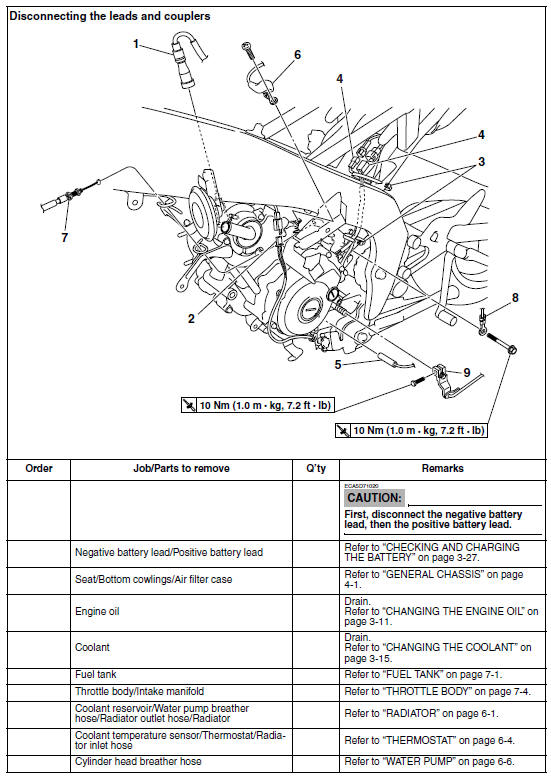

Engine removal

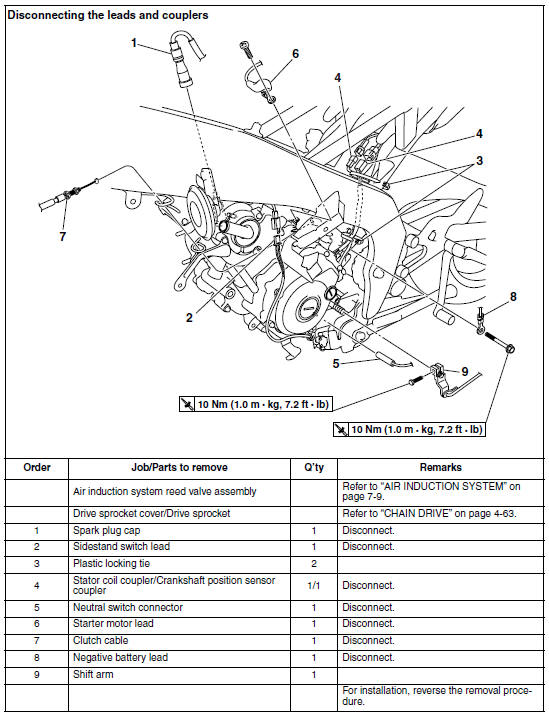

Engine removal


Engine
...

Installing the engine
1. Install: Engine "1" Engine mounting bolt (rear lower side) "2" Engine mounting nut (rear lower side) "3" Engine mounting bolt (rear upper side) "4" Engine mounting nut (rear upper side) ...

Other materials:

Starting circuit cut-off system operation
If the engine stop switch is set to " " and the main switch is set to "ON" (both switches are closed), the starter motor can only operate if at least one of the following conditions is met: The transmission is in neutral (the neutral switch is closed). The clutch lever is pulled to the ...

Circuit diagram
2. Crankshaft position sensor 4. Main fuse 5. Main switch 6. Radiator fan motor fuse 8. Sidestand switch 9. Battery 17.Engine stop switch 19.Intake air pressure sensor 20.Intake air temperature sensor 21.Throttle position sensor 22.Coolant temperature sensor 23.Lean angle sensor 24.S ...

Installing the shift forks and shift drum assembly
1. Install: Shift fork-L "1" Shift fork-C "2" Shift fork-R "3" Shift drum assembly "4" Springs Shift fork guide bar "5" NOTE: The embossed marks on the shift forks should face towards the right side of the engine and be in the following sequence: "R", "C", "L". 2. Check: Tr ...
