Yamaha YZF-R125 Service Manual: Clutch
- Removing the clutch
- Checking the friction plates
- Checking the clutch plates
- Checking the clutch springs
- Checking the clutch housing
- Checking the clutch boss
- Checking the primary drive gear
- Checking the primary driven gear
- Installing the clutch
Assembling the starter motor
1. Install:
Starter motor front cover/brush holder set "1"
Starter motor yoke "2"
NOTE:
Align the marks "a" on the starter motor yoke and
starter motor front cover/brush holder set.
...

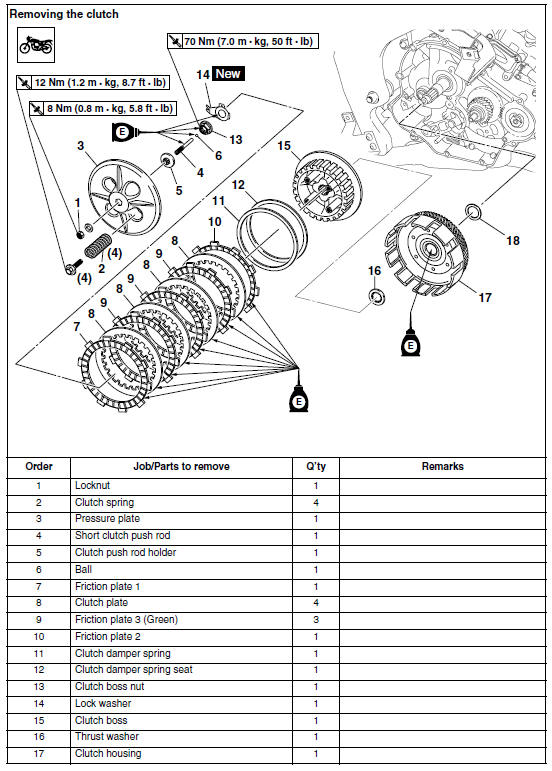

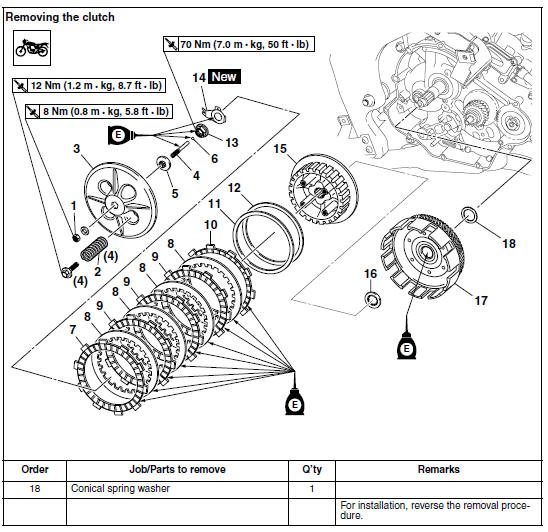

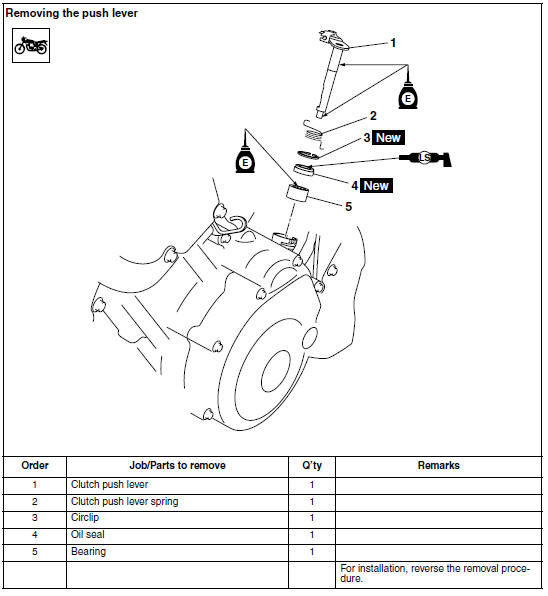

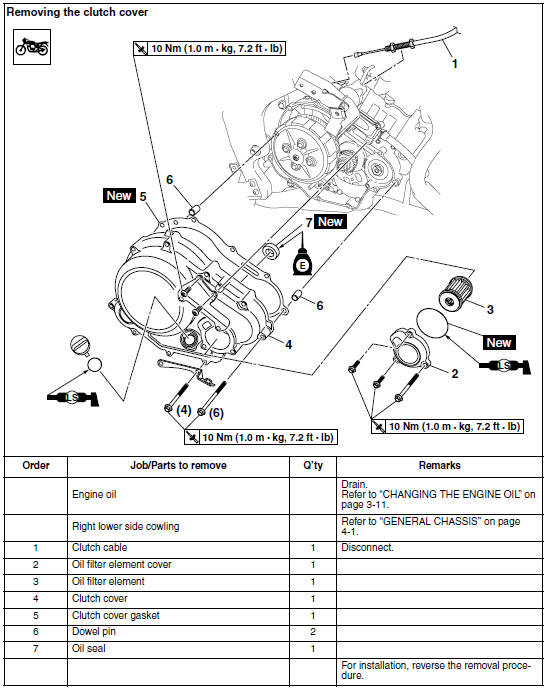

Removing the clutch
1. Straighten the lock washer tab.
2. Loosen:
Clutch boss nut "1"
NOTE:
While holding the clutch boss "2" with the universal
clutch holder "3", loosen the clutch boss nut.
...
