Yamaha YZF-R125 Service Manual: Checking the cooling system
1. Remove:
- Side covers
- Upper side cowlings Refer to "GENERAL CHASSIS" on page 4-1.
2. Check:

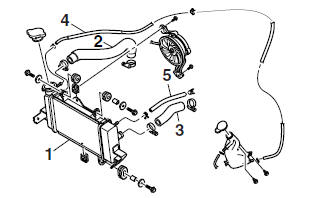

- Radiator "1"
- Radiator inlet hose "2"
- Radiator outlet hose "3"
Coolant reservoir hose "4"
Water pump breather hose "5" Cracks/damage → Replace.
Refer to "RADIATOR" on page 6-1.
3. Install:
- Upper side cowlings
- Side covers Refer to "GENERAL CHASSIS" on page 4-1.
Checking the coolant level
1. Stand the vehicle on a level surface.
NOTE:
Place the vehicle on a suitable stand.
Make sure the vehicle is upright.
2. Check:
Coolant level
The coolant level should be between the
max ...
Changing the coolant
1. Remove:
Lower side cowlings
Refer to "GENERAL CHASSIS" on page 4-1.
2. Remove:
Radiator cap "1"
WARNINGA hot radiator is under pressure.
Therefore,
do not remove t ...
Other materials:
Setting the diagnostic mode
1. Set the main switch to "OFF" and the engine stop switch to "
".
2. Disconnect the self-diagnosis signal connector "1", and then connect the FI
diagnostic tool "2" as
shown.
3. Disconnect the fuel pump coupler.
4. While pressing the "MODE" button, set the main switch to "ON".
NOTE:
...
Checking the radiator fan motor
1. Check:
Radiator fan motor
Faulty/rough movement → Replace.
a. Disconnect the radiator fan motor coupler
from the wire harness.
b. Connect the battery (DC 12 V) as shown.
Positive tester probe →
blue "1"
Negative tester probe →
black "2"
c. Measure ...
Periodic maintenance and lubrication chart
NOTE:
The annual checks must be performed every year, except if a
kilometer-based maintenance,
or for the UK, a mileage-based maintenance, is performed instead.
From 30000 km (17500 mi), repeat the maintenance intervals starting
from 6000 km (3500 mi).
Items marked with an asterisk s ...
