Rear shock absorber assembly


Installing the steering head
1. Lubricate: Upper bearing Lower bearing Bearing races 2. Install: Lower ring nut Rubber washer Upper ring nut Lock washer Refer to "CHECKING AND ADJUSTING THE STEERING HEAD ...

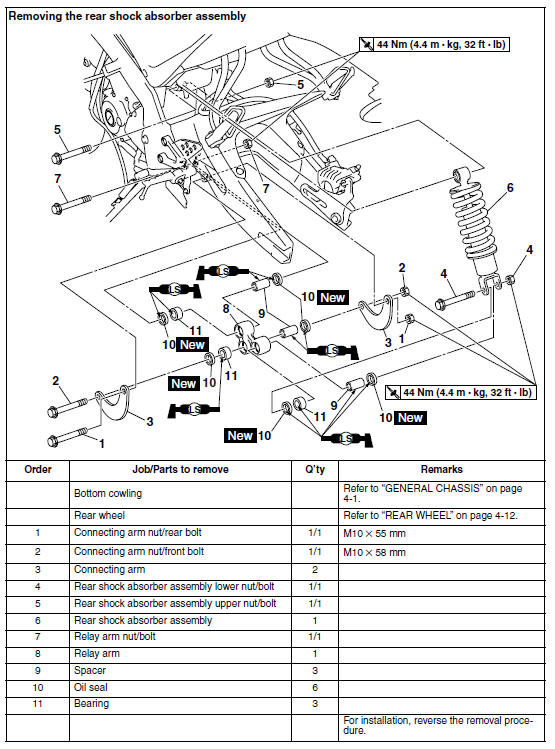

Removing the rear shock absorber assembly
1. Stand the vehicle on a level surface. WARNINGSecurely support the vehicle so that there is no danger of it falling over. NOTE: Place the vehicle on a suitable stand so that th ...

Other materials:

Checking the front brake lever free play
Checking the front brake lever free play Brake lever free play The brake lever free play should measure 2.0-5.0 mm (0.08-0.20 in) as shown. Periodically check the brake lever free play and, if necessary, have a Yamaha dealer check the brake system. WARNING An incorrect brake le ...

Installing the engine
1. Install: Engine "1" Engine mounting bolt (rear lower side) "2" Engine mounting nut (rear lower side) "3" Engine mounting bolt (rear upper side) "4" Engine mounting nut (rear upper side) "5" Engine mounting bolt (front side) "6" Engine mounting nut (front side) "7" NOTE: Do not ...

General tightening torque specifications
This chart specifies tightening torques for standard fasteners with a standard ISO thread pitch. Tightening torque specifications for special components or assemblies are provided for each chapter of this manual. To avoid warpage, tighten multi-fastener assemblies in a crisscross pattern and ...
