Yamaha YZF-R125 Service Manual: Installing the starter clutch

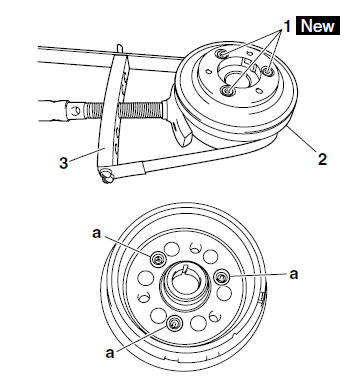

1. Install:

  • Starter clutch assembly
  • Starter clutch bolts "1"

NOTE:

  • While holding the generator rotor "2" with the sheave holder "3", tighten the starter clutch bolts.
  • Do not allow the sheave holder to touch the projection on the generator rotor.
  • Stake the end "a" of each starter clutch bolt.

Installing the starter clutch


    Checking the starter clutch
    1. Check: Starter clutch rollers "1" Starter clutch spring caps "2" Starter clutch springs "3" Damage/wear Replace the starter clutch assembly. 2. Check: Starter clutch idle ge ...

    Installing the generator
    1. Install: Woodruff key Generator rotor Washer Generator rotor nut NOTE: Clean the tapered portion of the crankshaft and the generator rotor hub. When installing the generator ro ...
