Yamaha YZF-R125 Service Manual: Disassembling the water pump

Yamaha YZF-R125 Service Manual / Cooling system / Water pump / Disassembling the water pump

1. Remove:

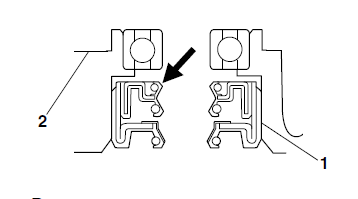

  • Water pump seal "1"

NOTE:

Remove the water pump seal from the inside of the water pump housing "2".

Disassembling the water pump


2. Remove:

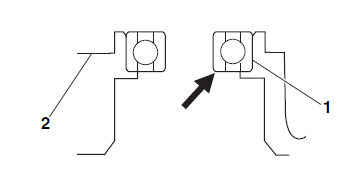

  • Bearing "1"

NOTE:

Remove the bearing from the outside of the water pump housing "2".

Disassembling the water pump


    Water pump
    ...

    Checking the water pump
    1. Check: Water pump housing cover Water pump housing Cracks/damage Replace. Impeller shaft Cracks/damage/wear Replace. Bearing Rough movement Replace. Radiator outlet hose Crac ...
