Yamaha YZF-R125 Service Manual: Disassembling the front wheel

Yamaha YZF-R125 Service Manual / Chassis / Front wheel / Disassembling the front wheel

1. Remove:

  • Oil seal
  • Wheel bearings

a. Clean the surface of the front wheel hub.

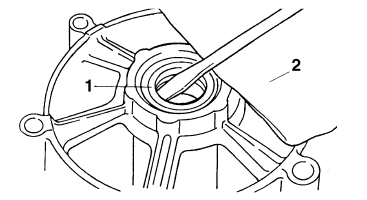

b. Remove the oil seal "1" with a flat-head screwdriver.

NOTE:

To prevent damaging the wheel, place a rag "2" between the screwdriver and the wheel surface.

Disassembling the front wheel

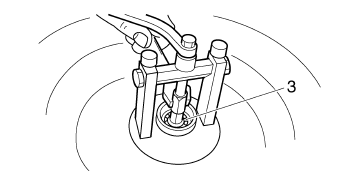

c. Remove the wheel bearings "3" with a general bearing puller.

Disassembling the front wheel


    Removing the front wheel (disc)
    1. Stand the vehicle on a level surface. WARNINGSecurely support the vehicle so that there is no danger of it falling over. 2. Elevate: Front wheel NOTE: Place the vehicle ...

    Checking the front wheel
    1. Check: Front wheel axle Roll the wheel axle on a flat surface. Bends → Replace. WARNINGDo not attempt to straighten a bent wheel axle. 2. Check: Tire Front wh ...
