Yamaha YZF-R125 Service Manual: Checking the fid (fast idle solenoid)

Yamaha YZF-R125 Service Manual / Electrical system / Electrical components / Checking the fid (fast idle solenoid)

1. Disconnect:

  • FID (fast idle solenoid) coupler

2. Check:

  • FID (fast idle solenoid) resistance

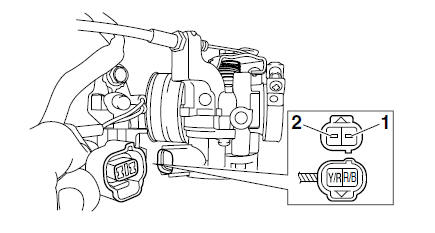

a. Disconnect the FID (fast idle solenoid) coupler from the FID.

b. Connect the pocket tester ( × 10)
to the terminals of the FID (fast idle solenoid).

  • Positive tester probe
    red/black terminal "1"
  • Negative tester probe
    yellow/red terminal "2"

c. Measure the FID (fast idle solenoid) resistance.

Out of specification  Replace
the throttle body assembly.


Checking the fid (fast idle solenoid)


    Intake air temperature sensor
    1. Check: Intake air temperature sensor resistance Out of specification Replace the throttle body. a. Connect the pocket tester ( × 1k) to the throttle body sensor assembly co ...
