Yamaha YZF-R125 Service Manual: Checking the clutch boss

Yamaha YZF-R125 Service Manual / Engine / Clutch / Checking the clutch boss

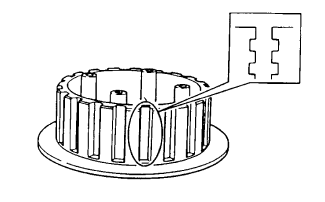

1. Check:

Clutch boss splines Damage/pitting/wear Replace the
clutch boss.

NOTE:

Pitting on the clutch boss splines will cause erratic clutch operation.

Checking the clutch boss


Checking the pressure plate

1. Check:

Pressure plate Cracks/damage Replace.


Checking the clutch push lever and short clutch push rod

1. Check:

  • Clutch push lever
  • Short clutch push rod Damage/wear Replace the
    defective part(s).
