Yamaha YZF-R125 Service Manual: Chain drive

Chain drive

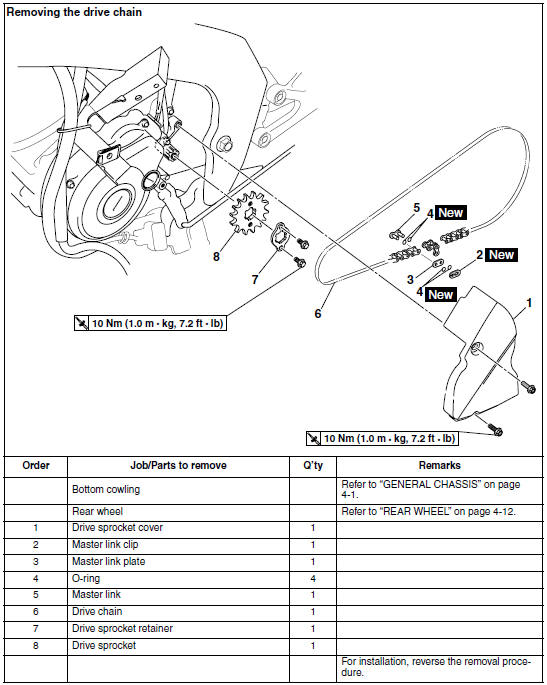

Removing the drive chain

1. Stand the vehicle on a level surface.

WARNING

Securely support the vehicle so that there is no danger of it falling over.

NOTE:

Place the vehicle on a suitable stand so that the rear wheel is elevated.

Installing the swingarm
1. Lubricate: Bearings Spacers Dust covers Pivot shaft 2. Install: Bearings "1" 2. Swingarm A. Left side B. Right side 3. Install: Swingarm adjusting collar "1" Swin ...

Checking the drive chain
1. Measure: 15-link section "a" of the drive chain Out of specification Replace the drive chain. a. Measure the length "a" between the inner sides of the pins and the length "b" between t ...

Other materials:

Setting the diagnostic mode
1. Set the main switch to "OFF" and the engine stop switch to " ". 2. Disconnect the self-diagnosis signal connector "1", and then connect the FI diagnostic tool "2" as shown. 3. Disconnect the fuel pump coupler. 4. While pressing the "MODE" button, set the main switch to "ON". NOTE: ...

Checking the condition of the bulb sockets
The following procedure applies to all of the bulb sockets. 1. Check: Bulb socket (for continuity) (with the pocket tester) No continuity Replace. NOTE: Check each bulb socket for continuity in the same manner as described in the bulb section, however, note the following. a. Install a ...

Installing the engine
1. Install: Engine "1" Engine mounting bolt (rear lower side) "2" Engine mounting nut (rear lower side) "3" Engine mounting bolt (rear upper side) "4" Engine mounting nut (rear upper side) "5" Engine mounting bolt (front side) "6" Engine mounting nut (front side) "7" NOTE: Do not ...
