Yamaha YZF-R125 Service Manual: Adjusting the headlight beams

The following procedure applies to both of the headlights.

1. Adjust:

  • Headlight beam (vertically)

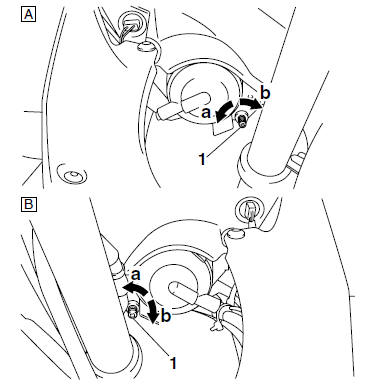

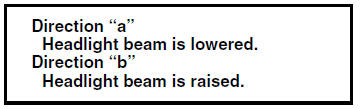

a. Turn the adjusting screw "1" in direction "a" or "b".


Adjusting the headlight beams


A. Left headlight

B. Right headlight

    Replacing the headlight bulbs
    The following procedure applies to the low beam headlight bulb. 1. Remove: Headlight bulb cover "1" 2. Remove: Headlight bulb holder "1" 3. Remove: Headlight bulb "1" ...
